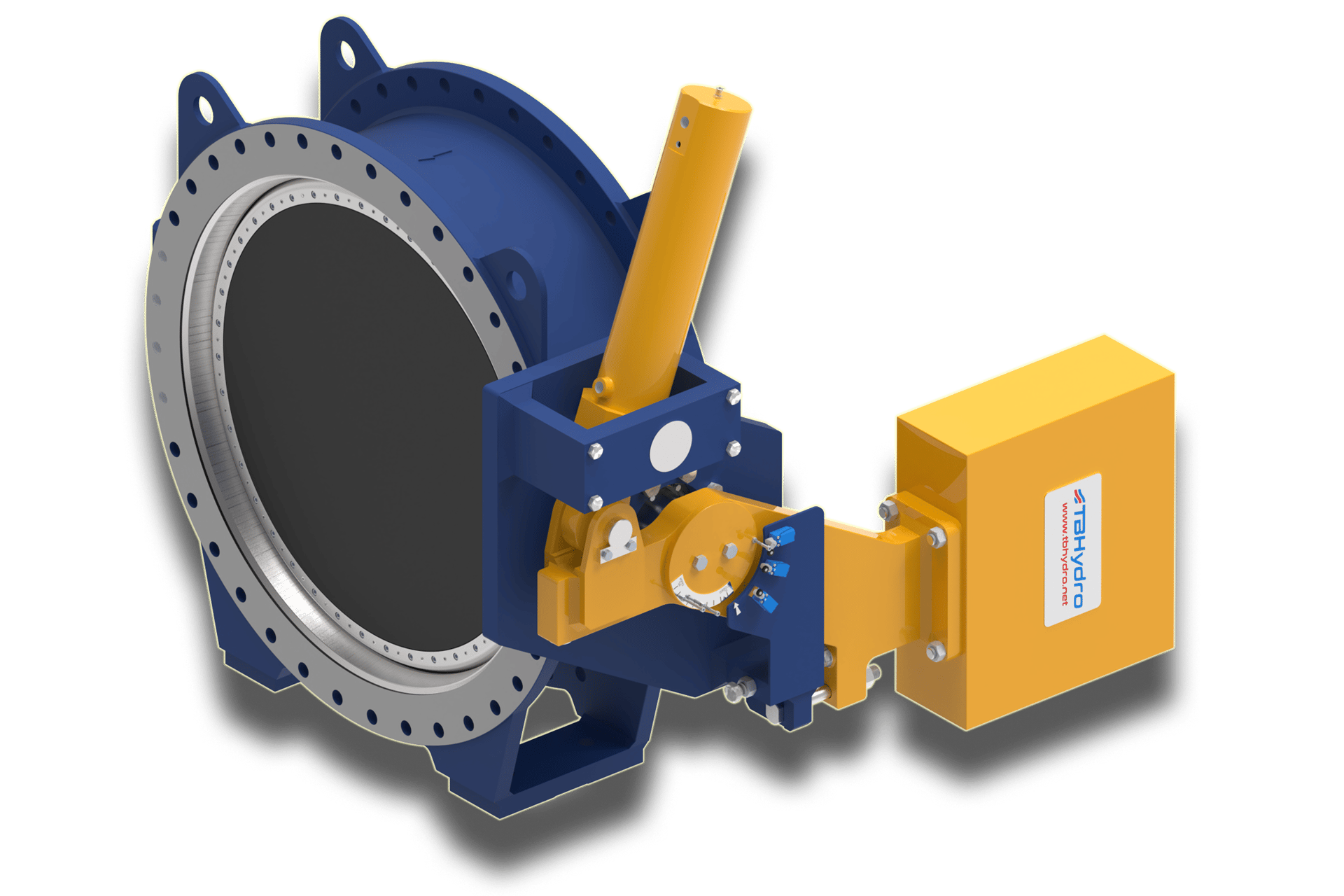

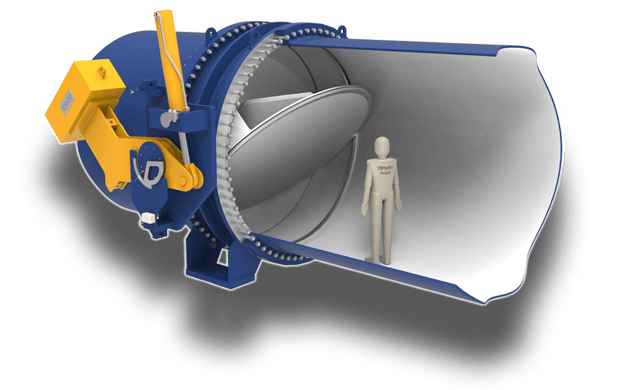

Butterfly Valves

BTV butterfly valves, designed, manufactured, and serviced by TB Hydro, are intended for emergency shut-off under full water flow in hydroelectric power applications.

Installation length and connections are according to EN/ASME standards or individual requirements. Other applications and media are available upon request. Triple-eccentric butterfly valves are also available upon request.

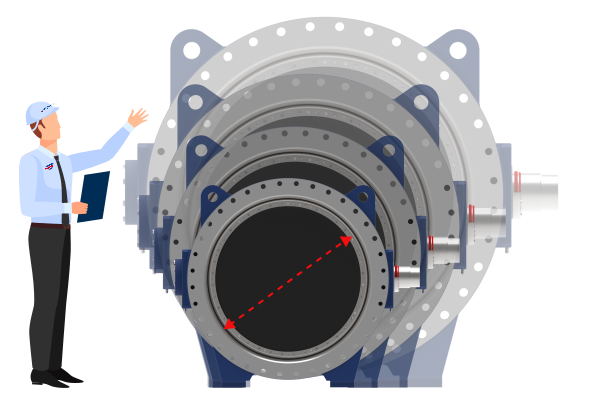

Diameter:

Wide range of diameters from 200 to 4000 mm.

Pressure

Pressure range from 6 to 200 bar.

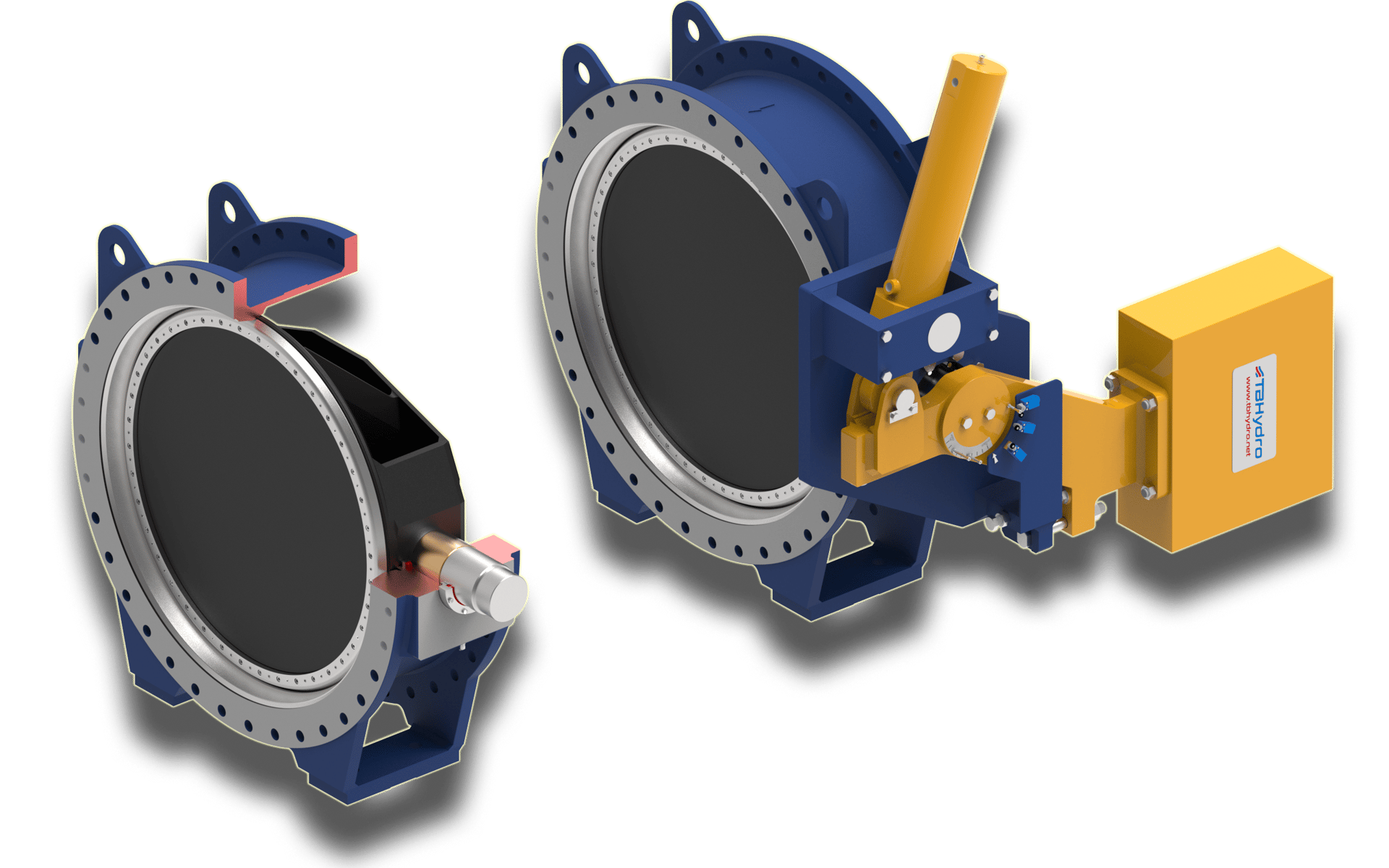

Butterfly Valves design

Body

The body with flanges is a single-piece unit, either welded from plates and forgings or cast. The sealing surface is typically a stainless steel welded insert, or optionally a replaceable, bolted version.

Disc

Optimized to reduce the loss coefficient and ensure the tightness of the butterfly valve. The disk is typically manufactured as a welded assembly from plates and forgings, or optionally as a casting.

Depending on the valve type, the disk can be:

type BTV: Flat disk

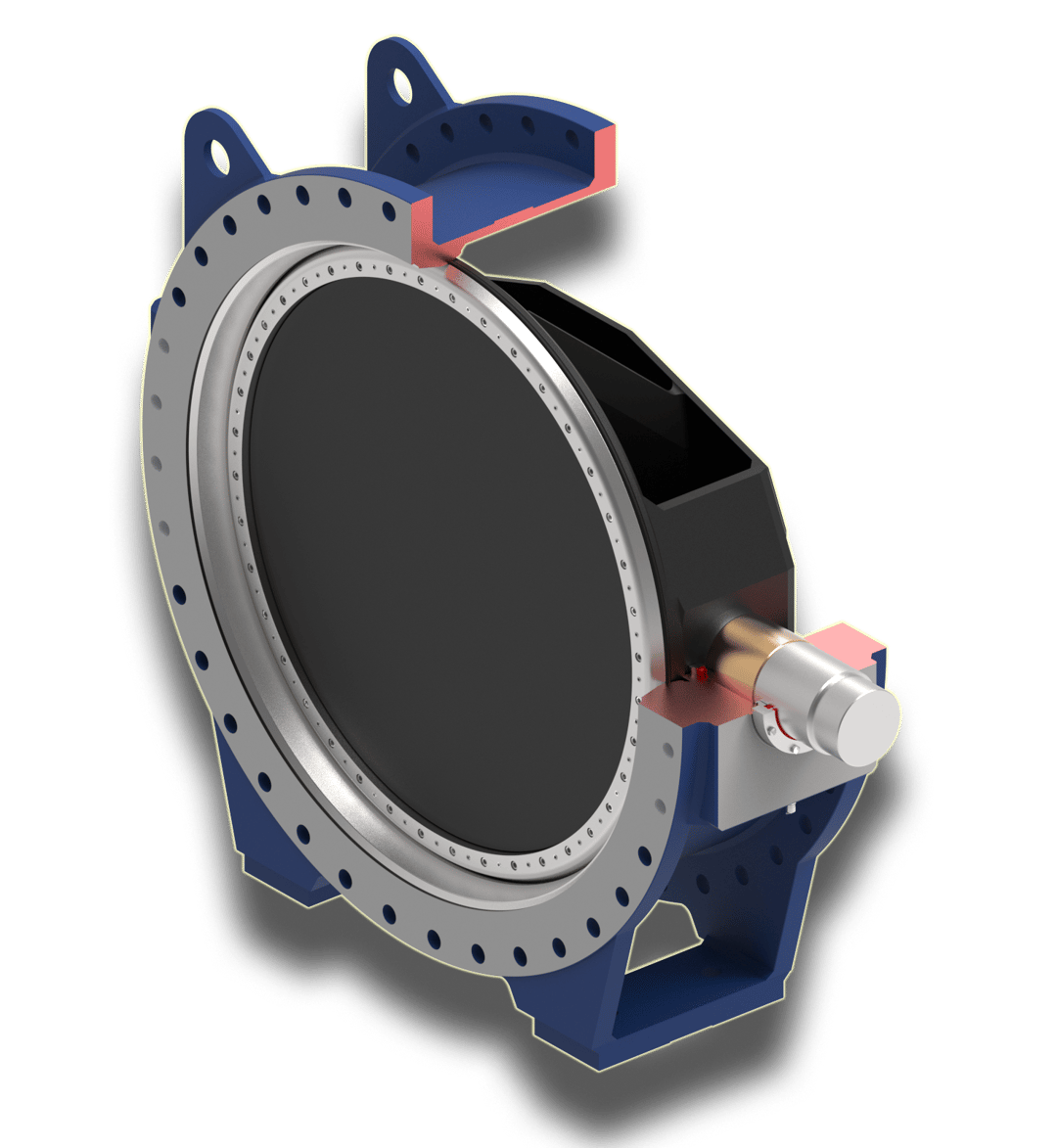

type BTV-B: Box-type disk

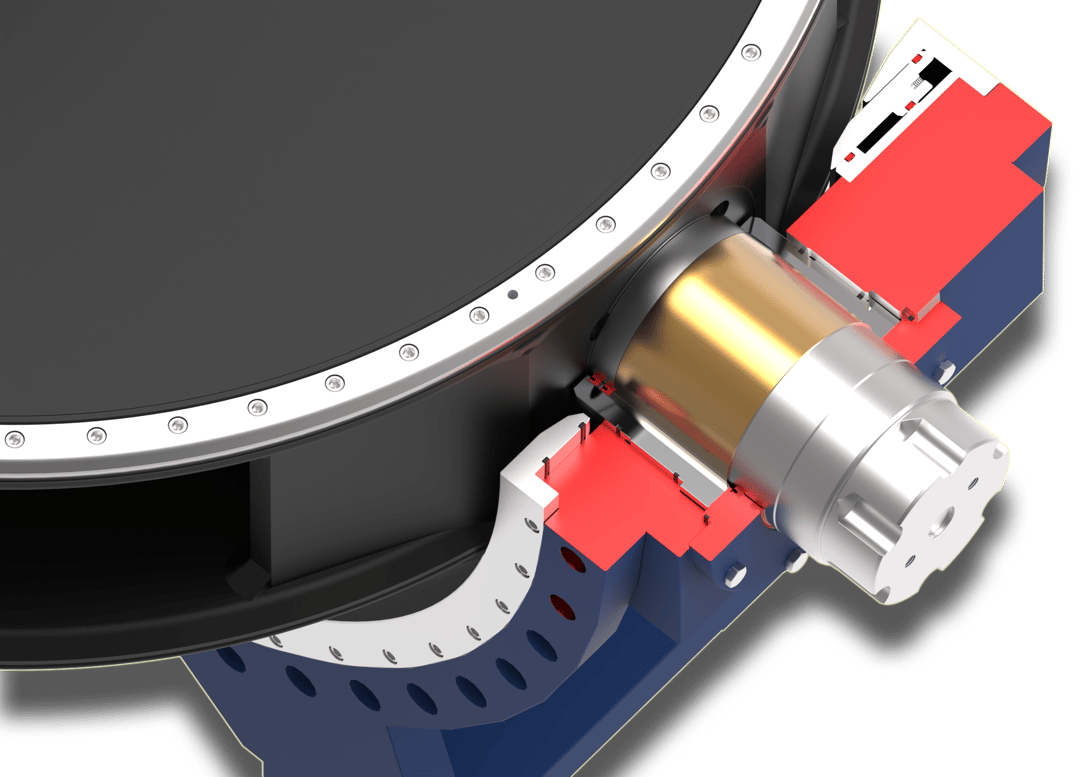

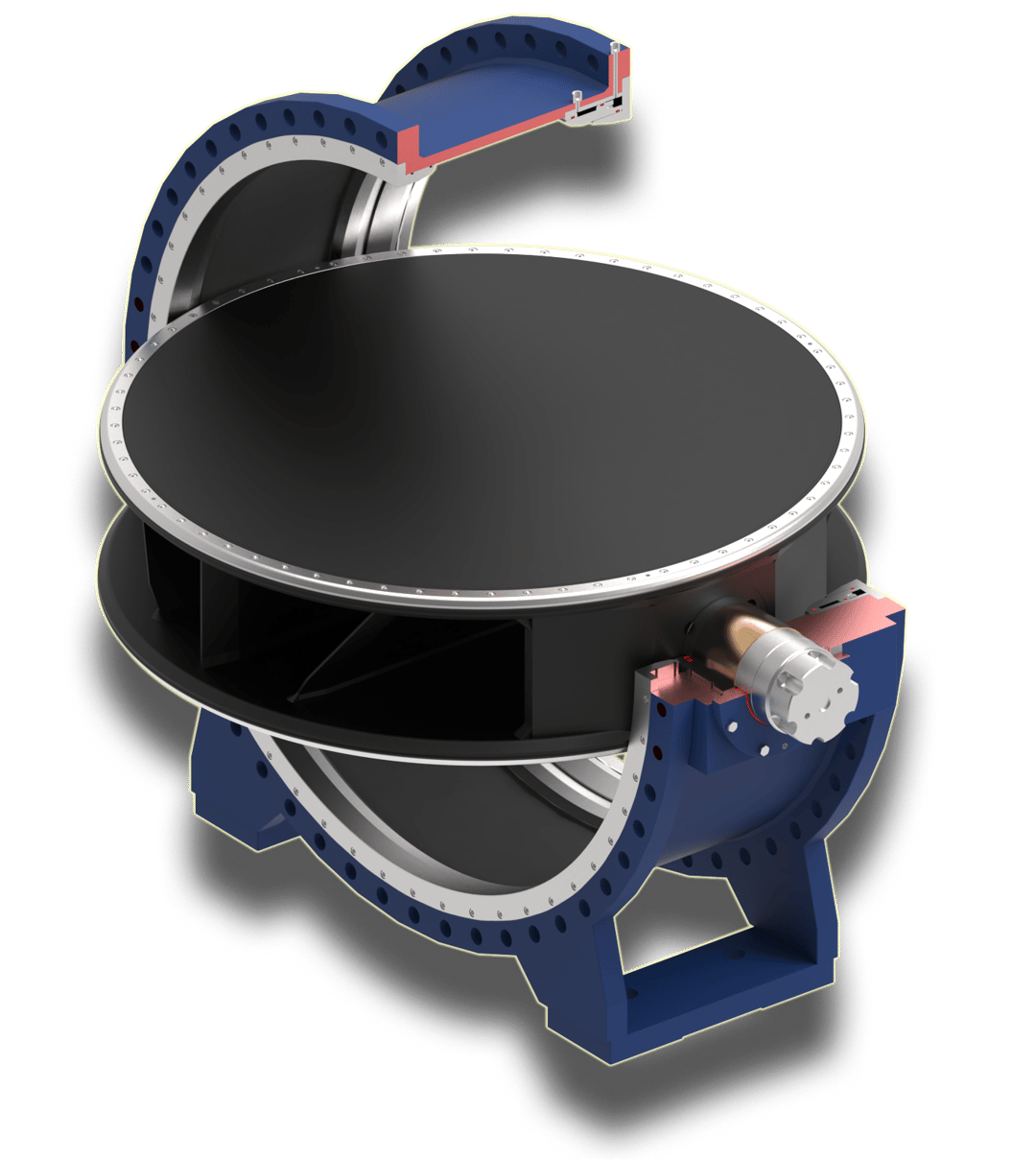

type BTV-B-M: Double disk with an inspection seal

Main Seal

A special NBR profile (70-85 ShA hardness, depending on operating conditions) is placed in the disk and secured by a stainless steel clamping ring, which allows for adjustable clamping force. Depending on the diameter, the clamping ring is manufactured either as a single piece or from segments.

It's possible to replace the seal without the need to remove the valve from the pipeline.

Other seal types and materials are available upon request.

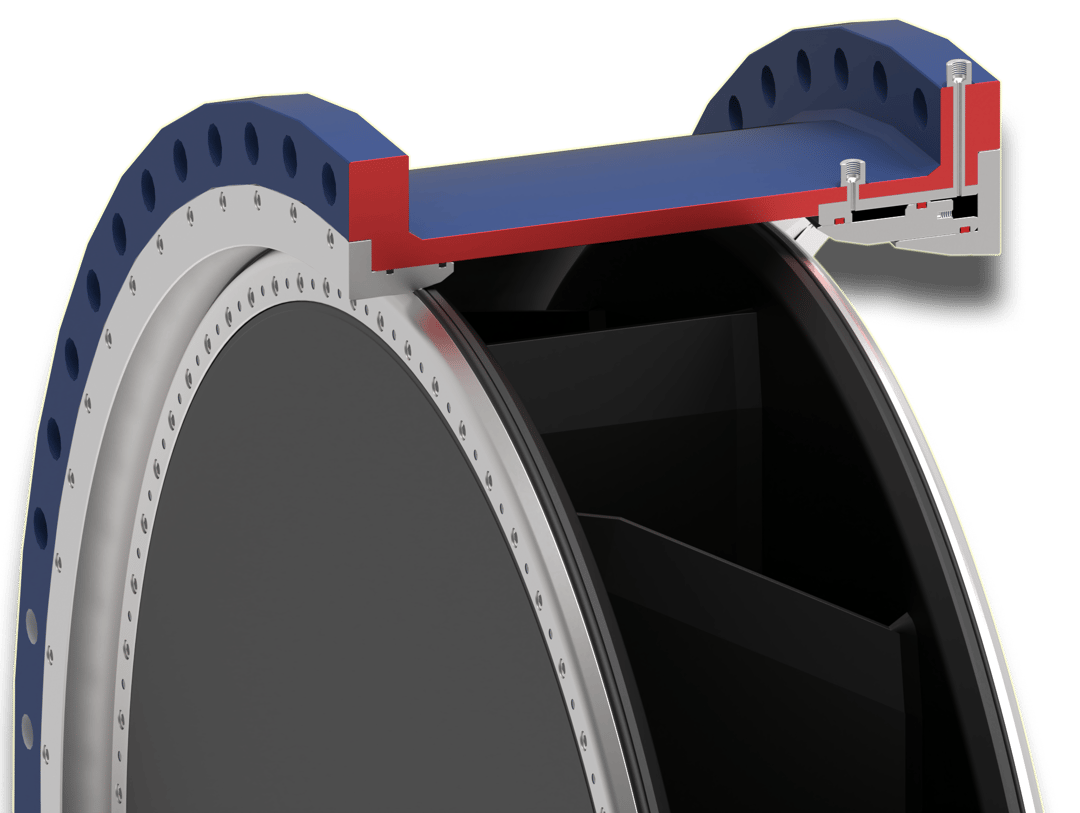

Maintenance Seal

An additional stainless steel ring is attached to the disk. A sliding ring, hydraulically actuated (by water pressure), is built into the body.

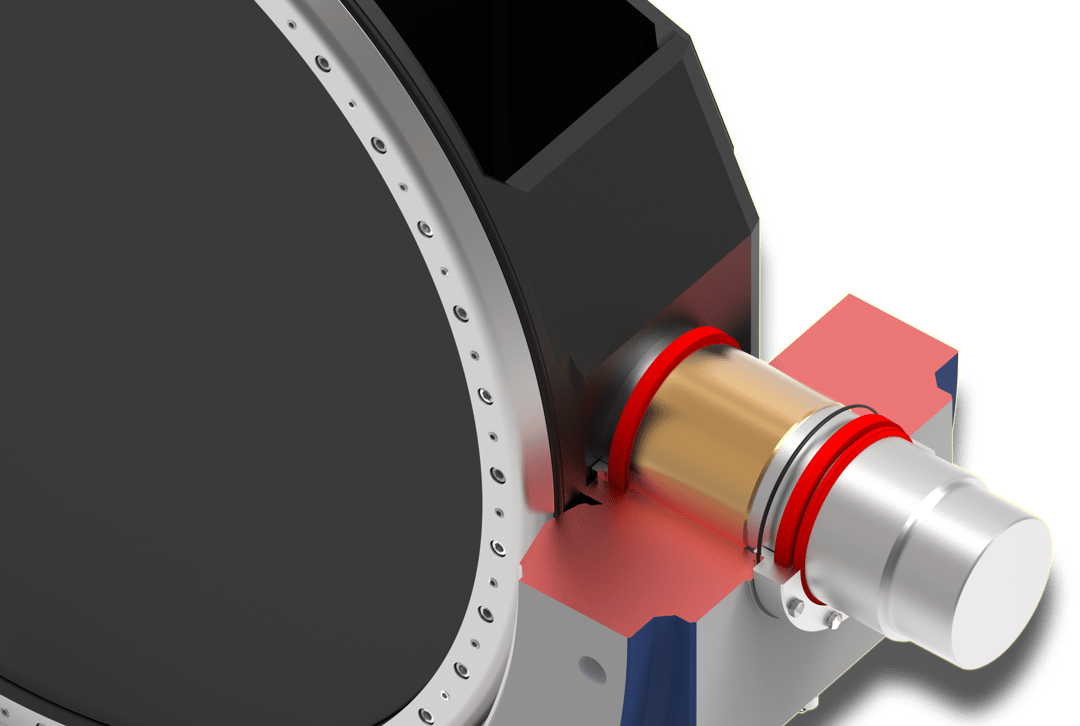

Shafts

Stainless steel shafts are rigidly connected to the disk using pins or bolted with tensioned screws; in such cases, torque is transmitted via sleeves. The shafts are supported in the body by maintenance-free, self-lubricating bearings. A double sealing system is employed: an internal seal protects the bearings from contamination by the flowing medium, and an external seal ensures tightness if the inner seal is damaged. The space between the seals is equipped with a control leakage port.

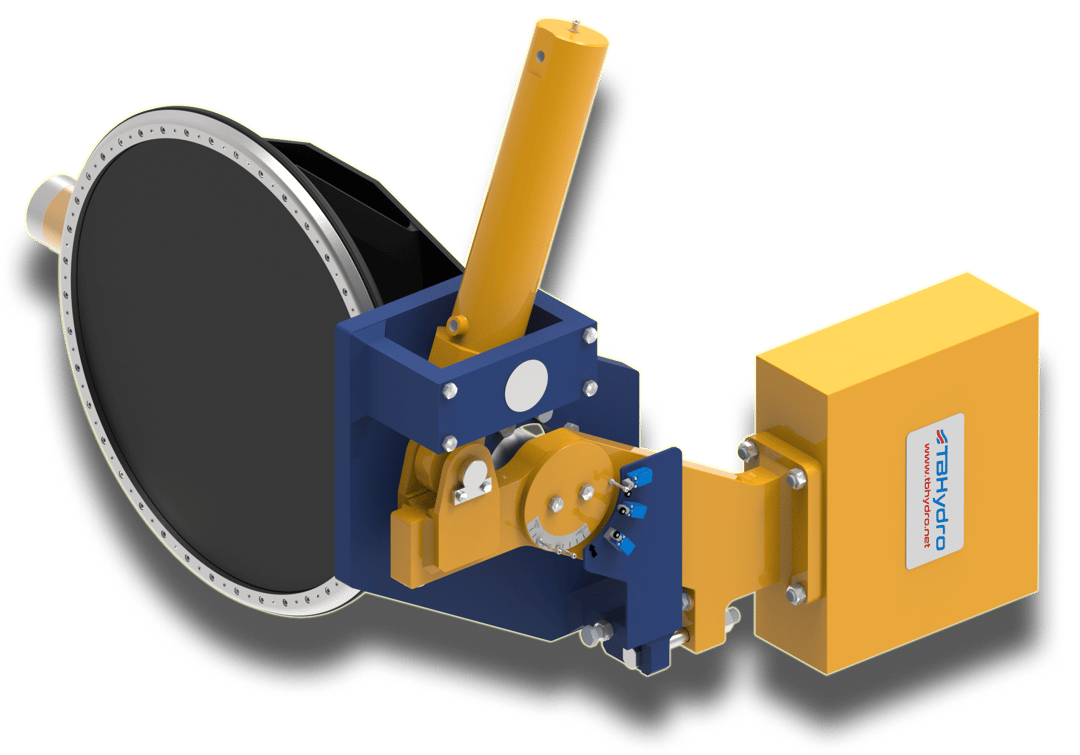

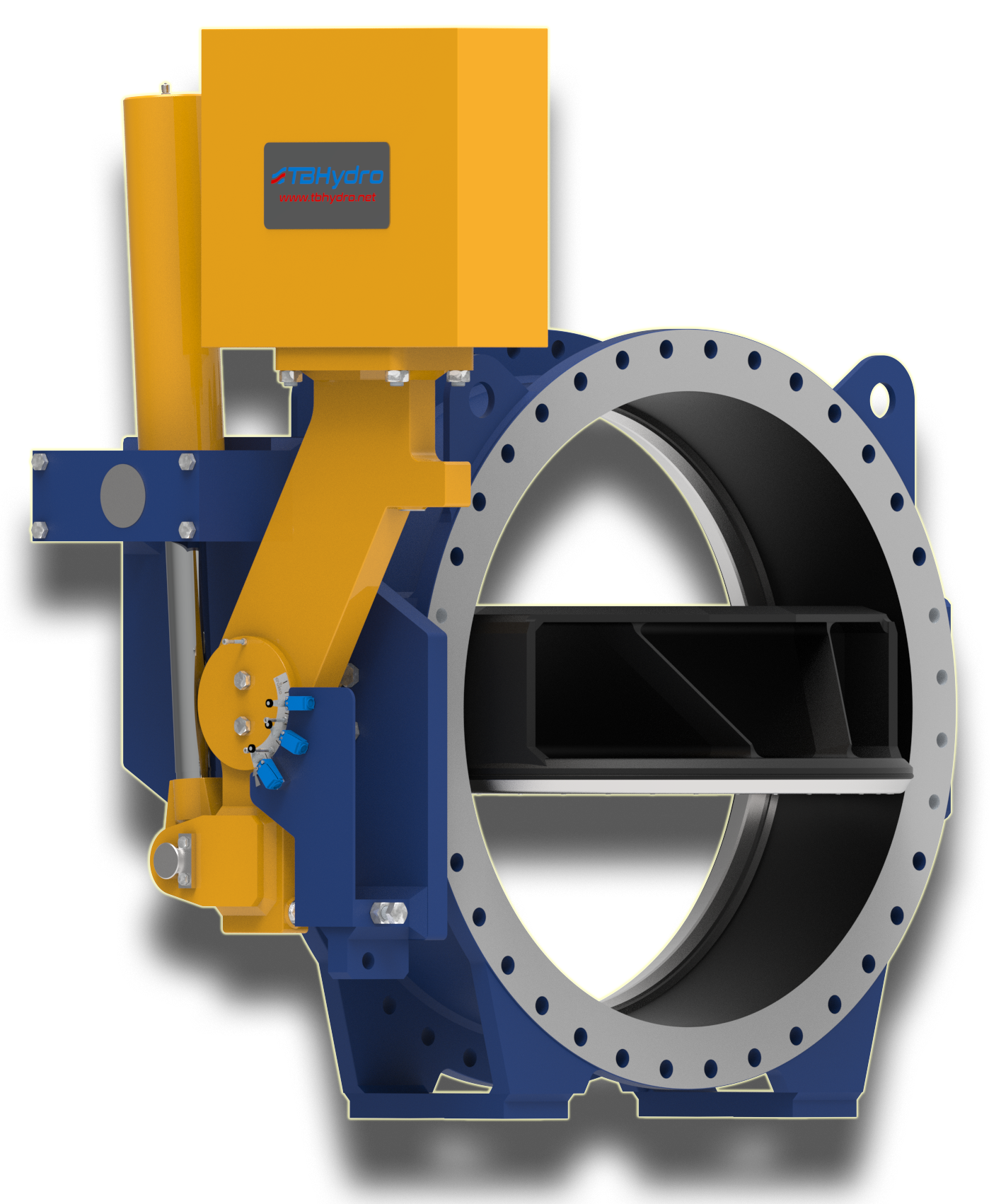

Actuator

The actuator can be:

Single-sided, mounted from either side, or double-sided.

Standard configurations include:

A counterweight for closing and a single-acting hydraulic cylinder for opening. The direction of the counterweight's descent is adjustable.

Optional actuators:

Double-acting hydraulic or water cylinder
Hydro-oil cylinder (water for closing, oil for opening)
Electric actuator with worm gear
Manual actuator with worm gear

Butterfly valves types and equipment

Butterfly valves types:

Type BTV: With flat / lenticular disk
Type BTV-B: With box-type disk
Type BTV-B-M: With double disk and inspection seal

Standard Butterfly Valve Equipment:

Connection flanges
Feet
Lifting lugs
Limit switches for closed/open positions
Visual position indicator

Optional Butterfly Valve Equipment:

Vent, drain, and additional connection ports
Mechanical locks in the closed/open positions
Additional electrical and hydraulic equipment, terminal box, hydraulic hoses
Electrical control panel
Hydraulic control system
Hydraulic power unit
Additional bearing sleeves enabling bearing removal without valve disassembly
Bearings with emergency lubrication capability
Automatic lubrication systems
2-stage actuator with adjustable valve closing characteristic

Materials

Basic materials used in our products. Other materials may be used according to customer requirements and their suitable application.

Element	Type	Material
Bodies, Closing Elements	Plates	S355J2+N
	Pipes	S355J2H
	Castings	G20Mn5
Shafts, Pins	Rods	1.4021 / 1.4313 / 1.4418
Sealing Surfaces	Plates	1.4301
Sealing Surfaces	Flat Bar	1.4301
Soft Main Seals	Bonded Cord - Special Profile	NBR 70-85ShA
Metal Main Seals	Plates	1.4301
Metal Main Seals	Castings	1.4006 / 1.4021 / 1.4057 / 1.4301 / 1.4313
Bolts, Nuts	Contact with Air	8.8 / 8 Galvanized Steel
Bolts, Nuts	Contact with Water	A2-70 / A4-80
Bearings	Maintenance-Free, Self-Lubricating	-
Corrosion Protection	2-Component Epoxy Paints	-
