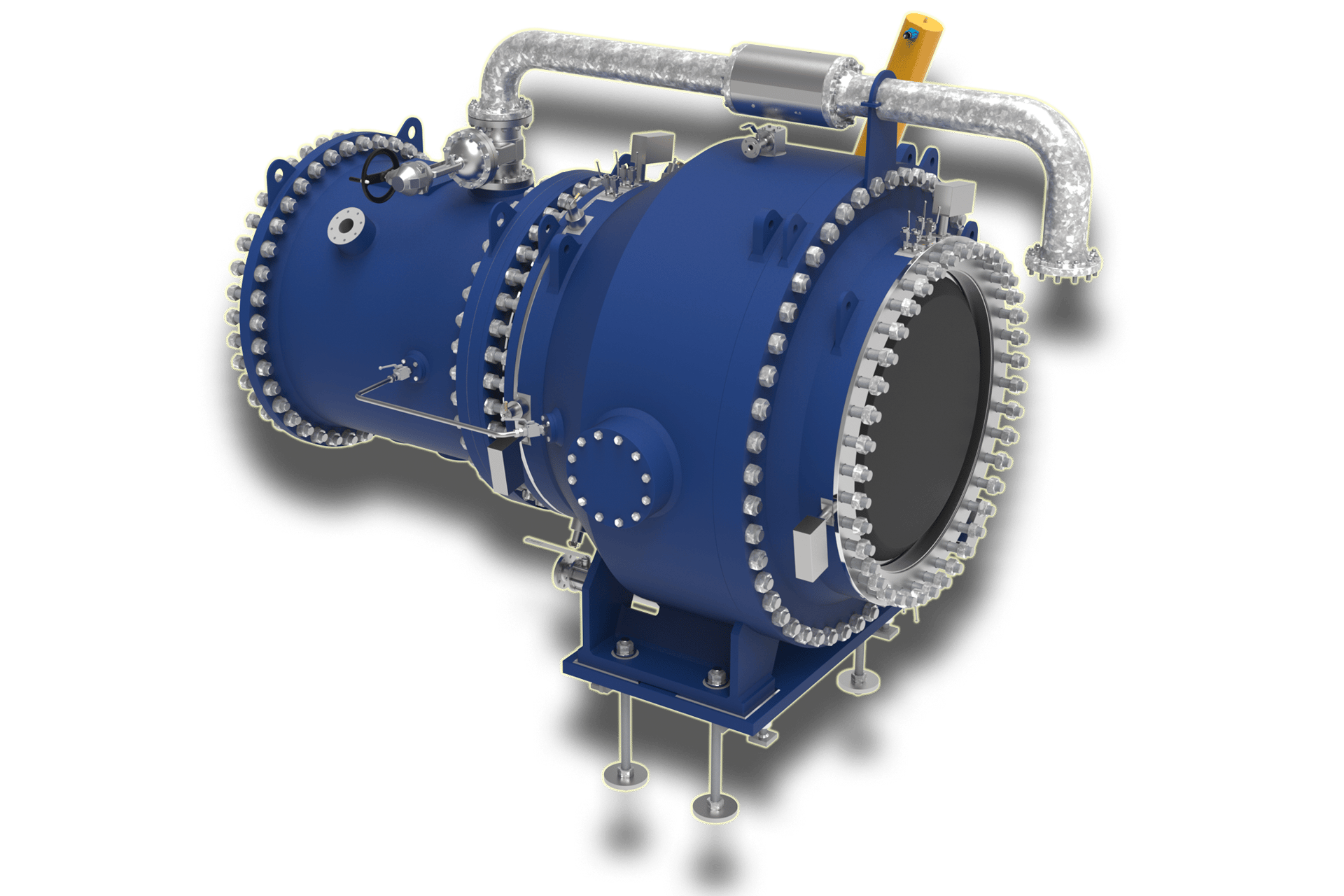

Complete Valve Systems

TB Hydro supplies complete valve systems for hydroelectric power plants. Each system configuration is tailored to the client’s specific requirements and the local installation conditions.

System Components:

Main valve

Butterfly Valve or Ball Valve

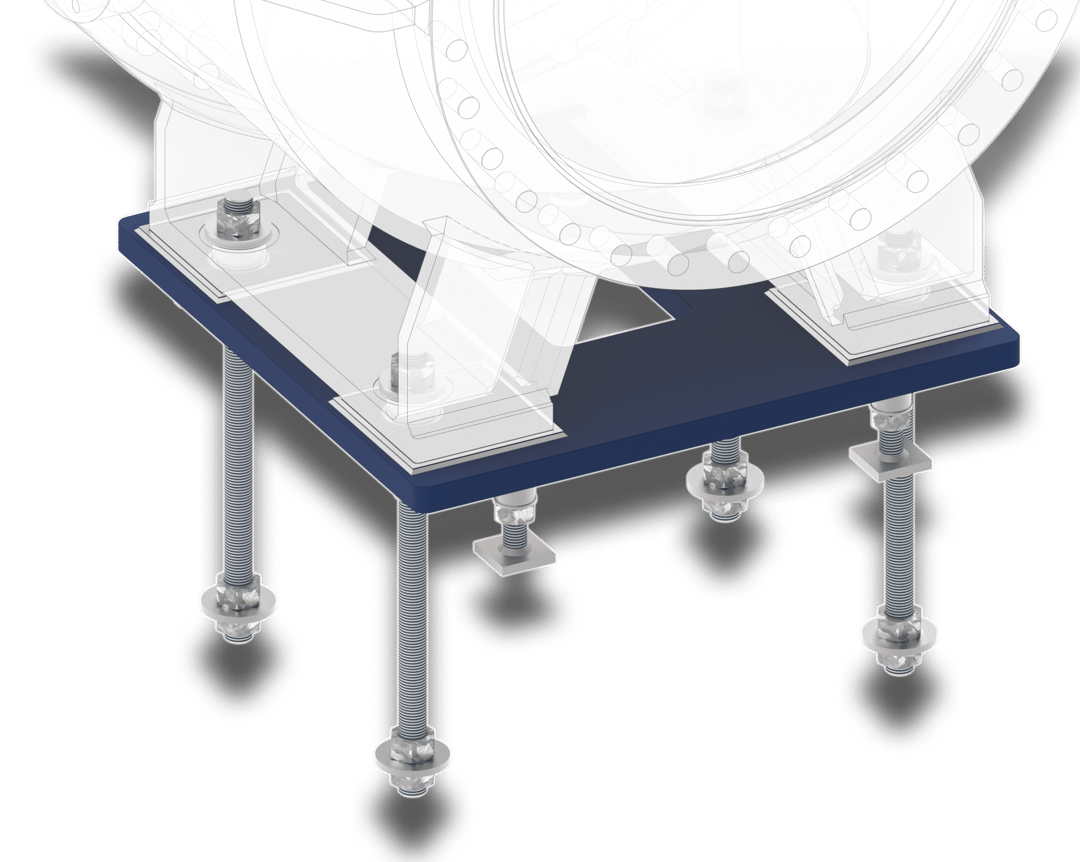

Foundation Plate

The foundation plate features stainless steel sliding surfaces that allow for axial movement of the valve.
tbhydro

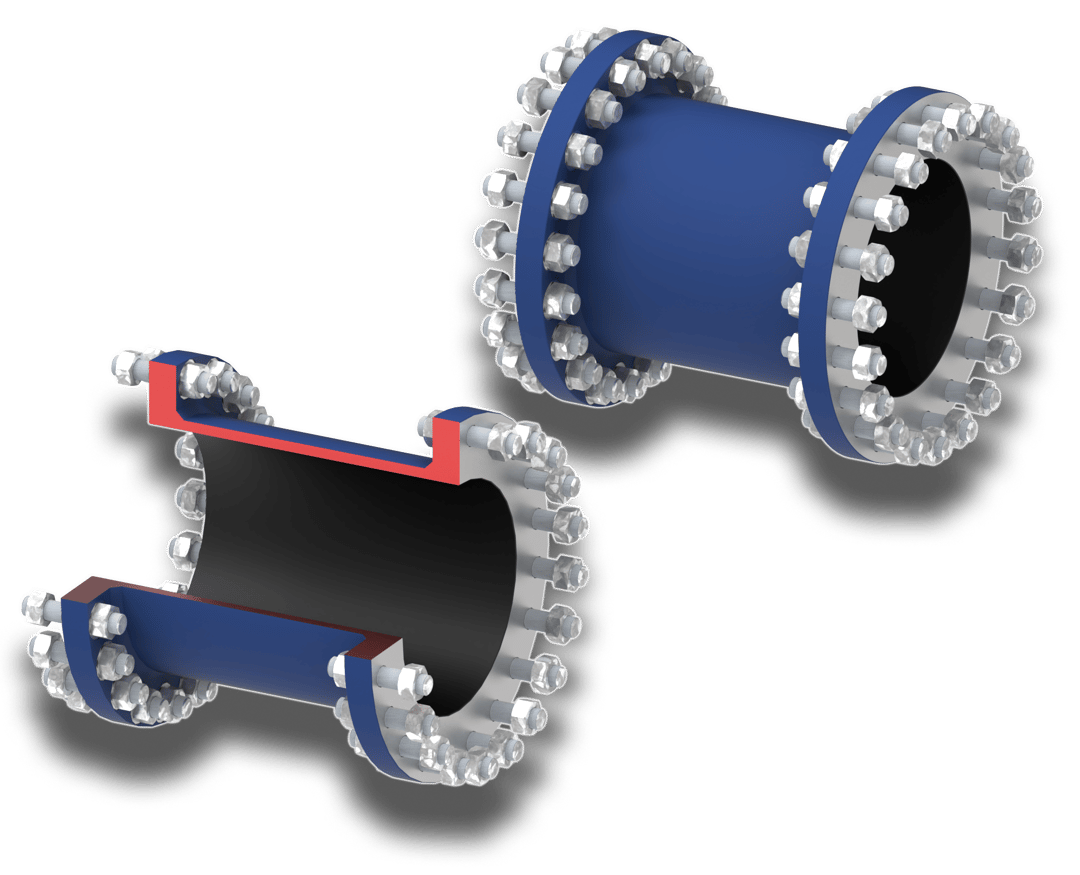

Inlet and Outlet Pipes

Connections: Special Equipment:
  • Flanged
  • Weld-in ends
  • Manhole
  • Measuring points
  • Nozzles for mounting accessories

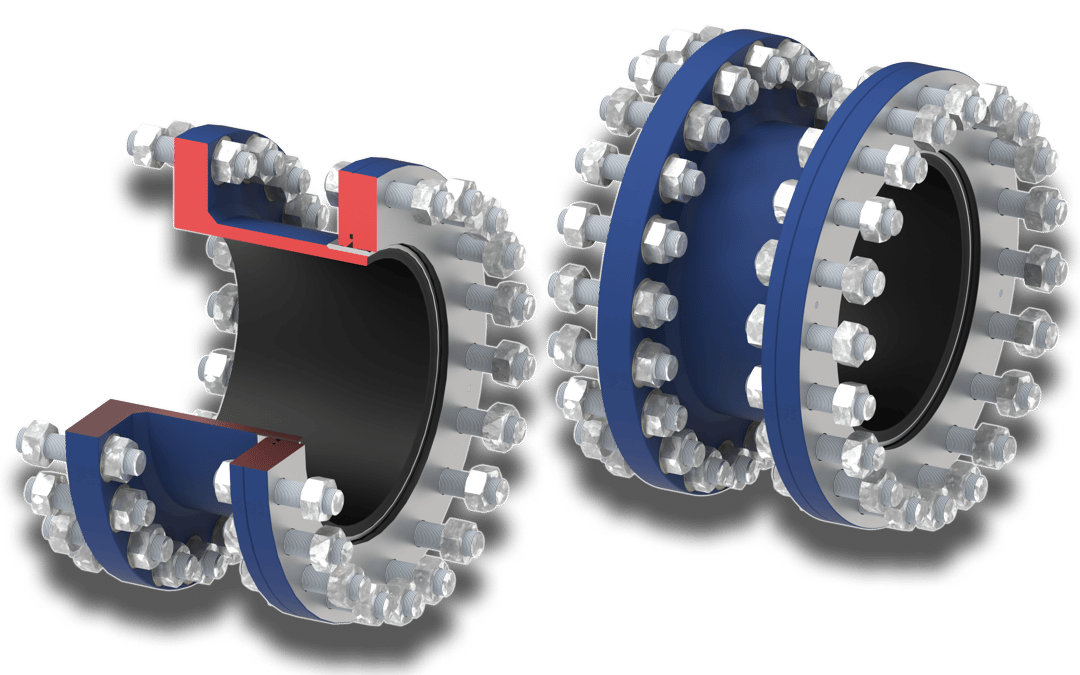

Installation Insert

Versions:

  • Rigidly bolted (DJ 1 and DJ 3)
  • With movable flange (DJ 2)

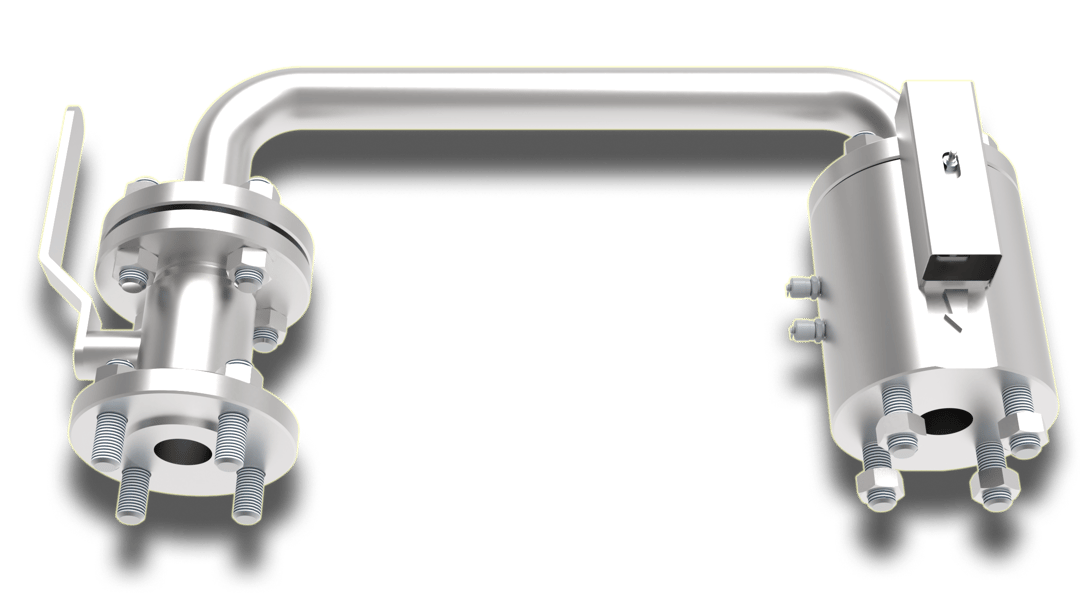

Bypass with service and maintenance valve

Finish:

  • Stainless steel
  • Hot-dip galvanized

Optional System Components:
