Slide Valves

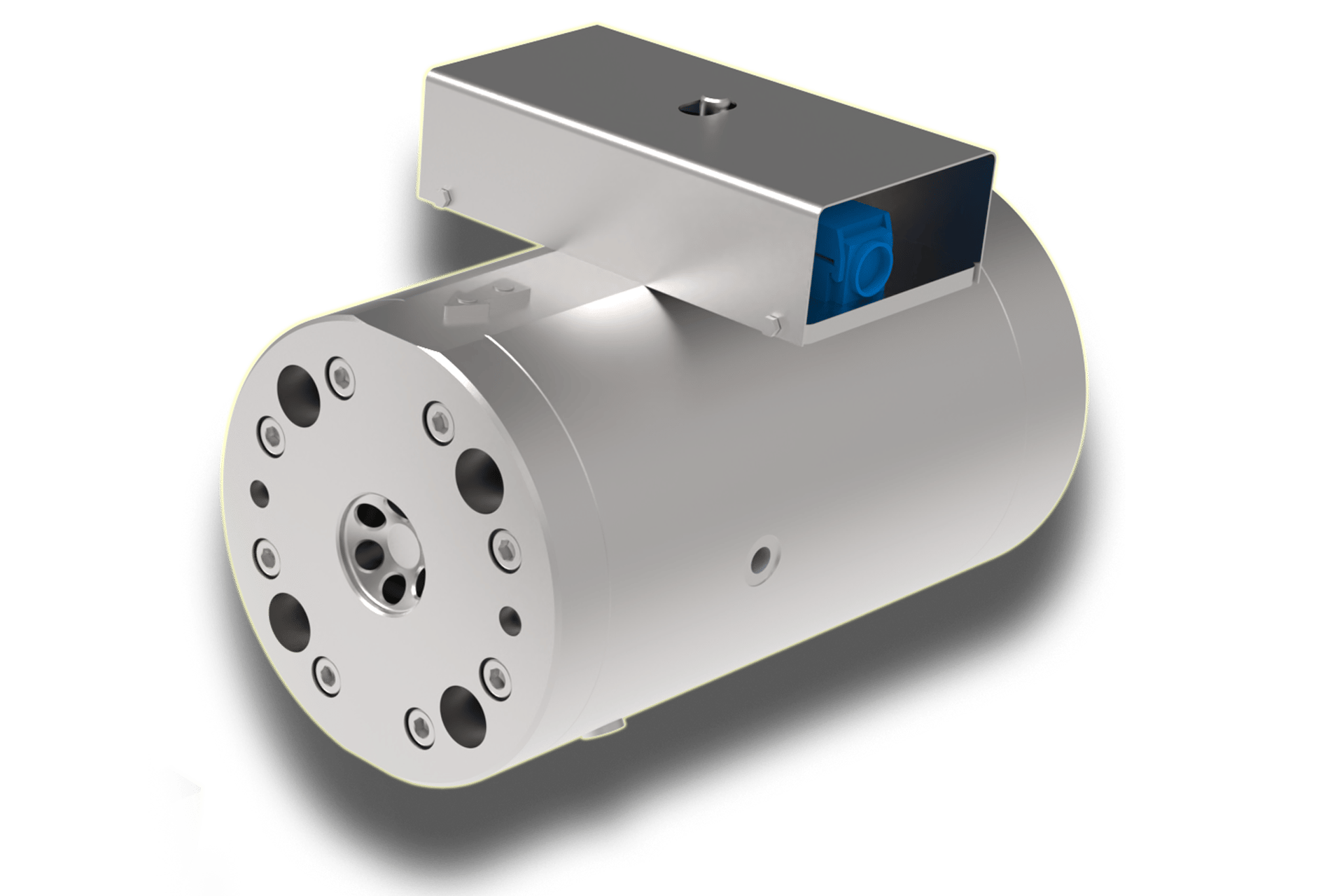

SLV slide valves are compact open-close type valves with an integrated internal actuator for valve control. They are used as shut-off devices in water pipelines, particularly in bypass lines for pressure equalization. Connections are according to EN/ASME standards or individual requirements. TB Hydro designs these valves specifically for each customer’s individual needs. Other applications and media are available upon request.

Diameter:

Sluice valve diameter range: from 25 to 500 mm.

Pressure:

Pressure range: from 10 to 200 bar.

Seal / Sealing

Metal-to-Metal Seal

Medium:

Water temperature: 4 to 70°C
Recommended medium velocity: up to 20 m/s

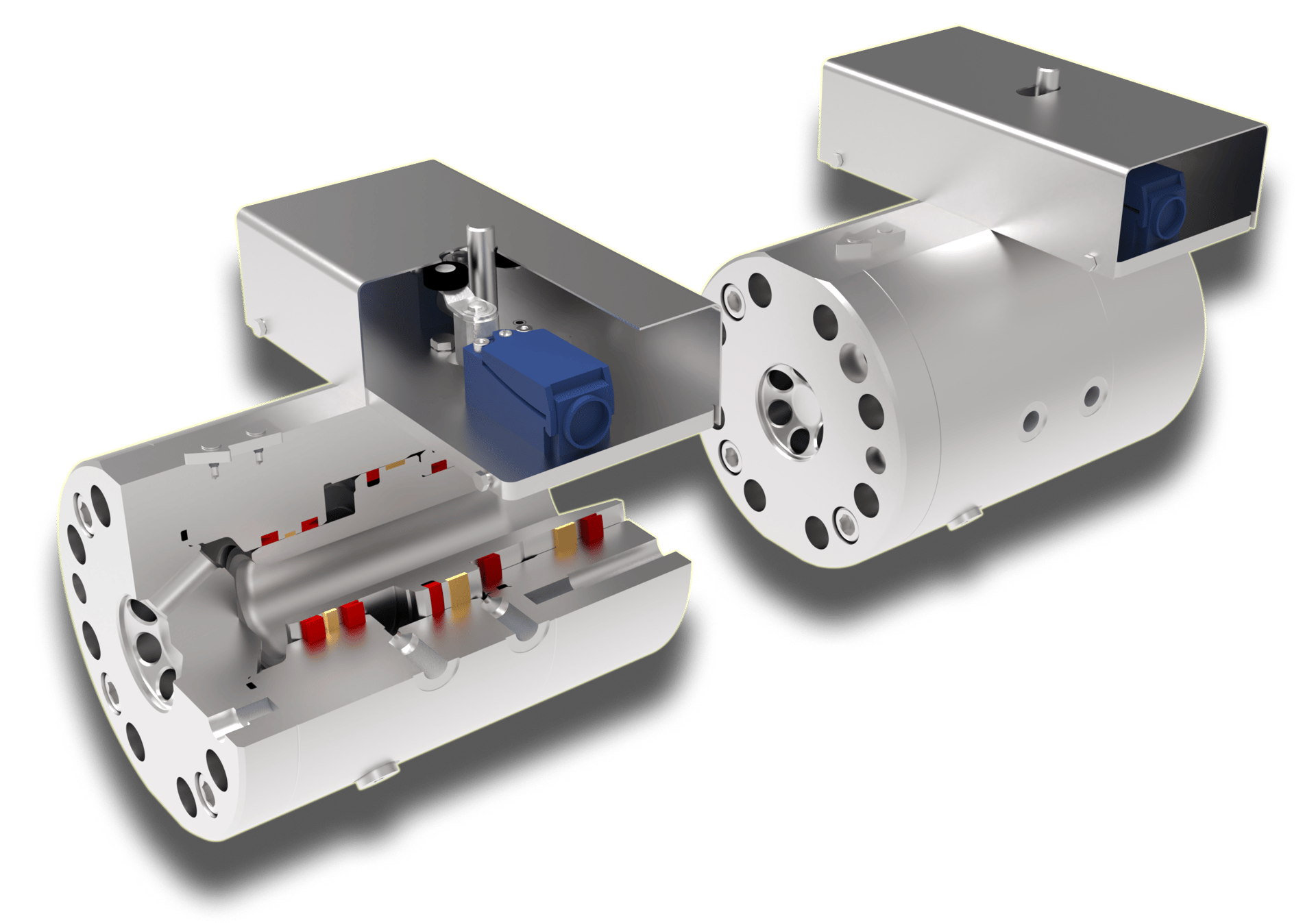

Slide Valve Design

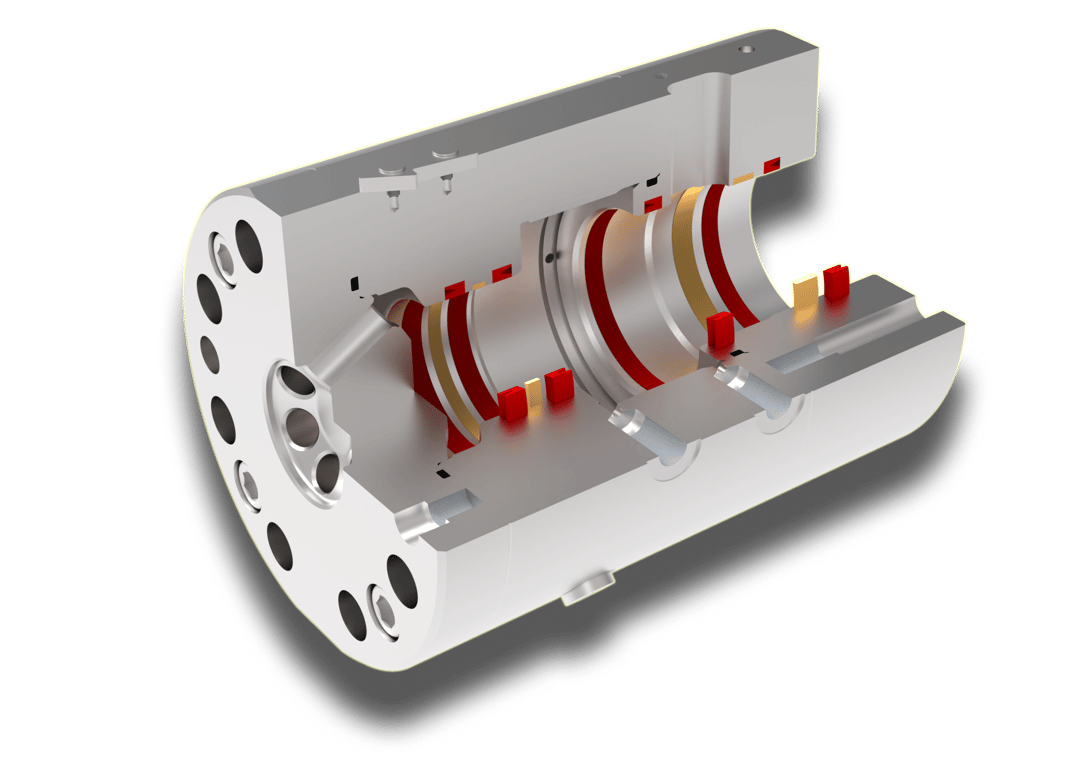

Body

The body is bolted together and features an integrated actuator. The size of the actuator chamber is selected based on operating conditions. An orifice plate is located at the body's outlet for energy dissipation. The holes in the orifice plate are individually sized to match the valve's operating conditions. There is no possibility of mixing the working and control media due to the inclusion of control and leakage drain ports.

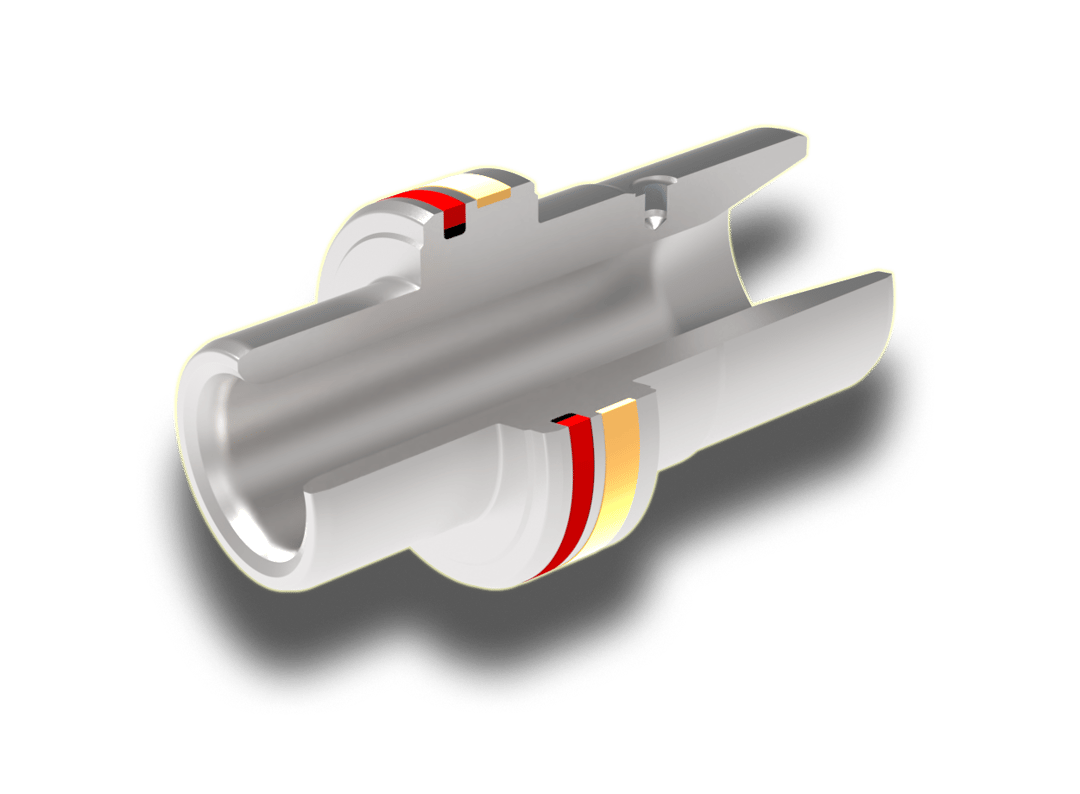

Piston

The piston performs a reciprocating motion, controlled by an internal actuator. The piston tends to self-close under the influence of the medium's pressure inside the valve.

Actuator Types and Equipment for Slide Valves:

Possible Control Options:

Opening and closing with oil or filtered water

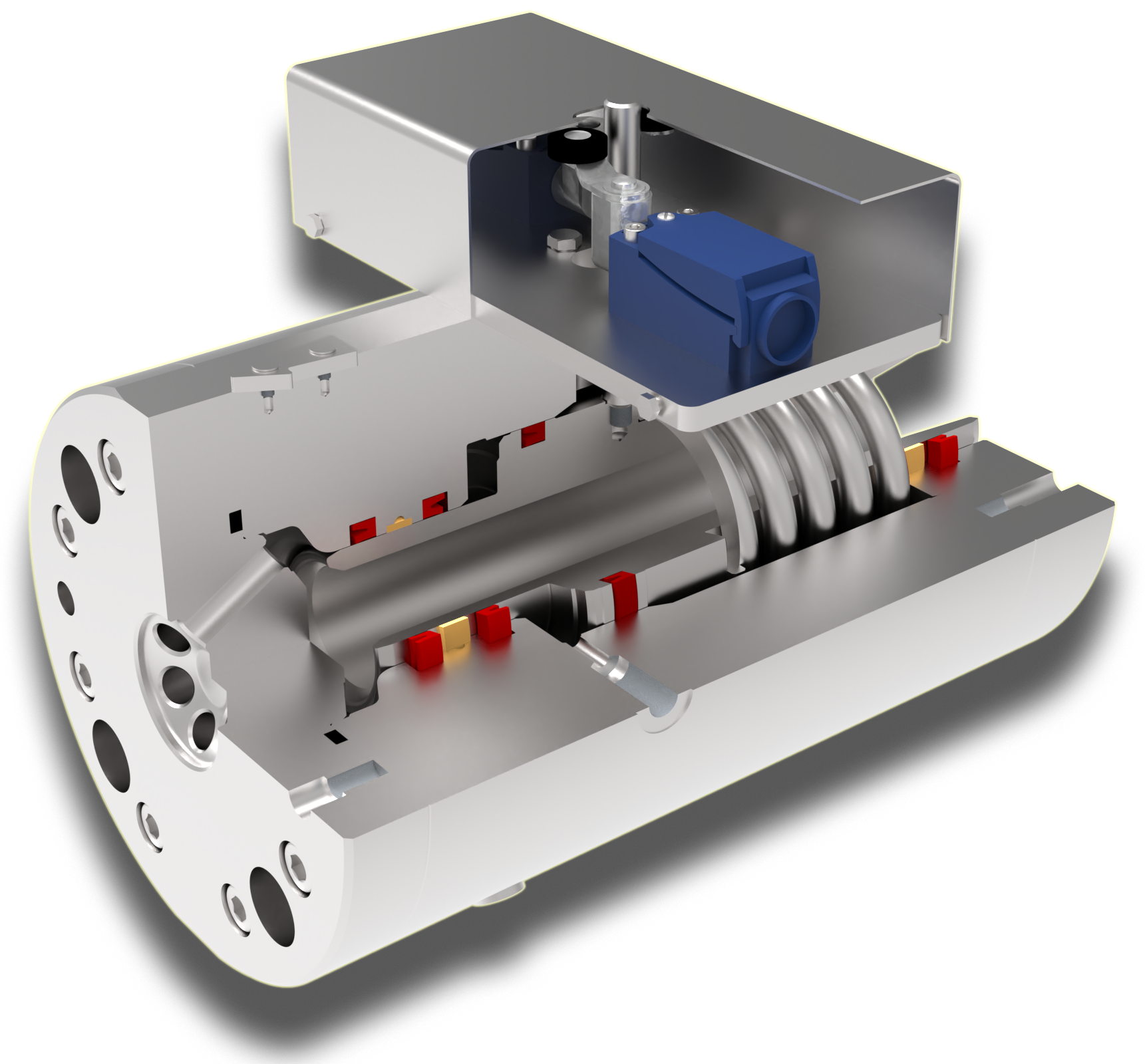

Opening with oil or filtered water, closing with a spring

Standard Slide Valve Equipment:

Visual position indicator
Limit switch for closed/open position signaling

Optional Equipment:

Linear position indicator
Cabling and terminal box
Additional hydraulic and electrical equipment
Possible separation of water and oil leakages

Materials

Basic materials used in our products. Other materials may be used according to customer requirements and their suitable application.

Element	Type	Material
Bodies, Closing Elements		1.4057 / 1.4313 / 1.4418
Piston		1.4301 / 1.4057 / 1.4313 / 1.4418
Orifice Plate		1.4418
Metallic Main Seals (Metal-to-Metal)		1.4301 / 1.4057 / 1.4313 / 1.4418
Soft Seals	Special profile	Polyurethane
Soft Seals	O-rings	NBR 70Sh / 80Sh / 90Sh
Bolts, Nuts		A2-70 / A4-80
Springs		Spring Stainless Steel
